Half the footprint.

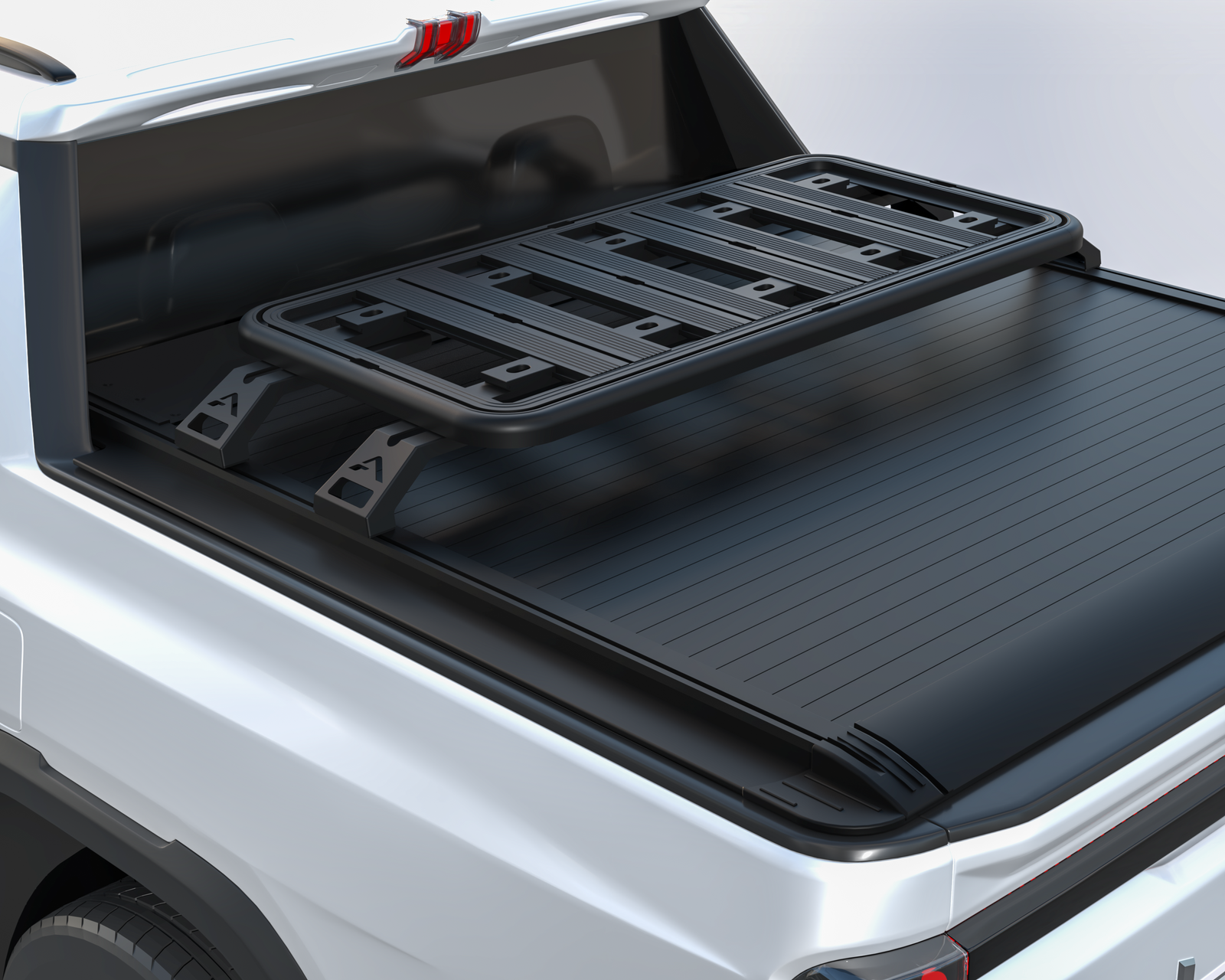

The Akuma 4x4 Compact Tub Rack Platform packs full-sized versatility into a half-length design — built for the LDV Terron 9, with full sailplane compatibility. Tough enough to carry your gear. Compact enough to keep rear access clear.
01
Built Tough
- Powder-coated aluminium with stainless steel hardware.
- UV-resistant finish built for harsh sun and weather.
- 130mm fixed-height profile maximises clearance for tall cargo.
02
Smart Versatility
- 100kg static load capacity — handles toolboxes, recovery gear, even your spare tyre.
- T-slot accessory channels along the length and outer edges for tie-downs, brackets, and mounts.
- Half-length compact design leaves rear tub access open for taller cargo or modular setups.
03
Easy Installation
- Bolt-on, no-drill design — mounts to your Akuma 4x4 roller shutter (or compatible aftermarket cover — check fitment).
- Full sailplane compatibility — works around the Terron 9's factory sailplane without trimming or removal.
- All hardware included — pre-matched to fit, no extras to source.
- Workshop fit available in Brisbane or via our growing install network across major Australian hubs.
What's in the Box
i
Platform Unit
Pre-assembled aluminium build
ii
Platform Legs
Bolt onto shutter rails
iii
Mounting Hardware
All bolts, brackets & fittings
Specifications
Datasheet
MaterialPowder-coated aluminium with stainless steel hardware
FinishMatte black, UV-resistant
Profile Height130mm (fixed)
Footprint (L × W)650mm × 1250mm
Load Rating (Static)100kg
MountingAkuma 4x4 roller shutter rails
SailplaneFull compatibility — no trimming required
Drilling RequiredNo
Warranty12 months
Fitment
✓ Engineered for the Terron 9
VehicleLDV Terron 9
Body StyleDual-cab ute, factory tub
Years2025+
Carry more. Stay ready.
Specifications
Specifications
SKU: TUB-UNV-001
