Compact
The Detail
Half the footprint. All the use.

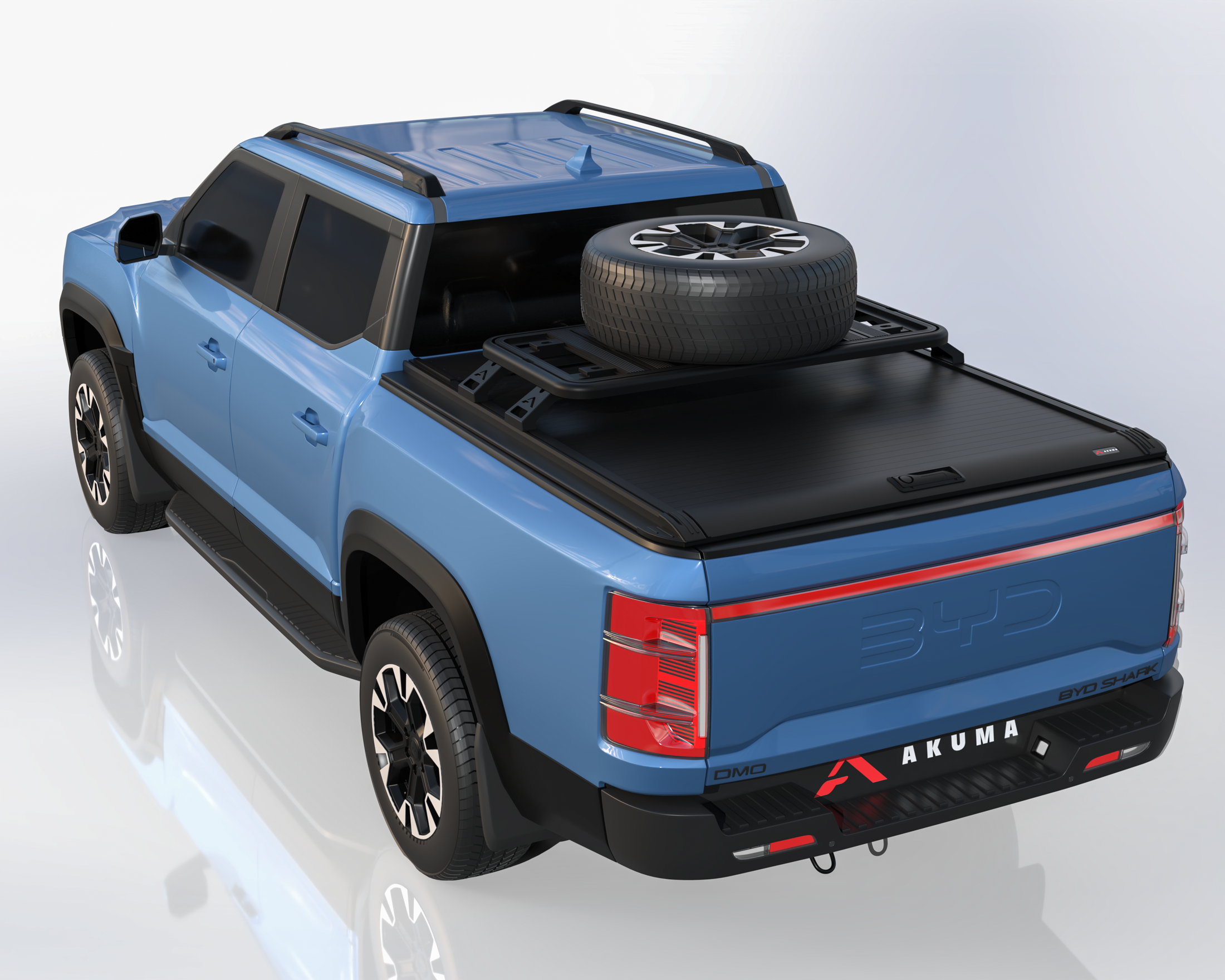

Turn the front of your BYD Shark 6 tub into a strong, low-profile mounting platform — without giving up the tray. The compact rack bolts straight onto your roller shutter rails and puts a full T-slot surface up front for recovery boards, jerry cans, toolboxes, tie-downs and even the spare tyre, while the rear of the tub stays open for taller or longer gear.

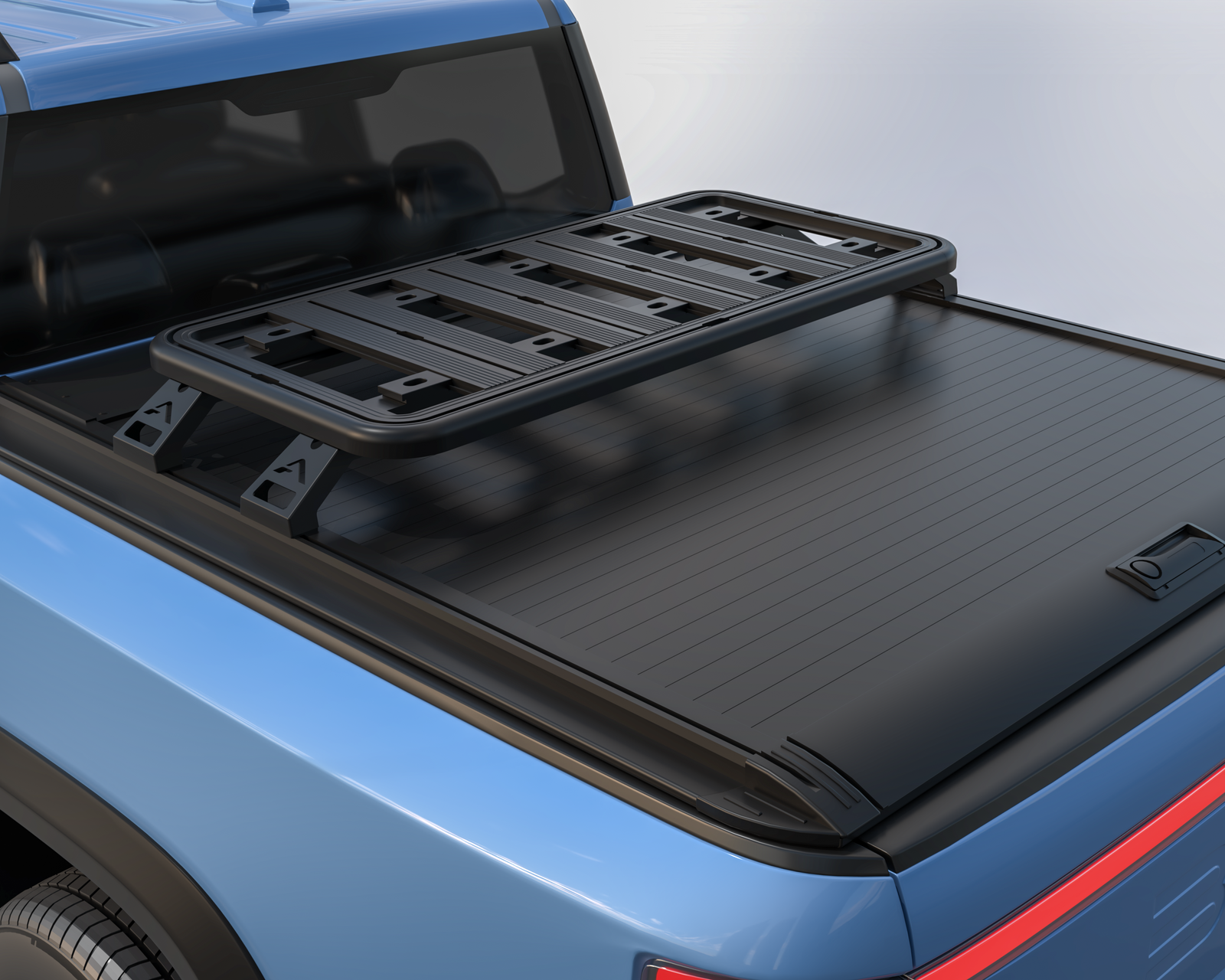

Cut specifically for the Shark 6 tub, it sits low and flush against the factory body lines — a tidy 130mm profile that keeps the rig garage-friendly and stealthy. No drilling, no cutting; all mounting hardware is supplied and matched to fit. Mounts to the Akuma roller shutter, or a compatible aftermarket roller cover — check fitment with us first.
Part of the whole Akuma system. Rated to 100kg dynamic, built to lock the tub underneath while you carry your everyday kit up top. Running a rooftop tent or heavier loads? Step up to the full-size platform with the Super Support Kit.
In The Field
Built to be used.
01
Keep Rear Access

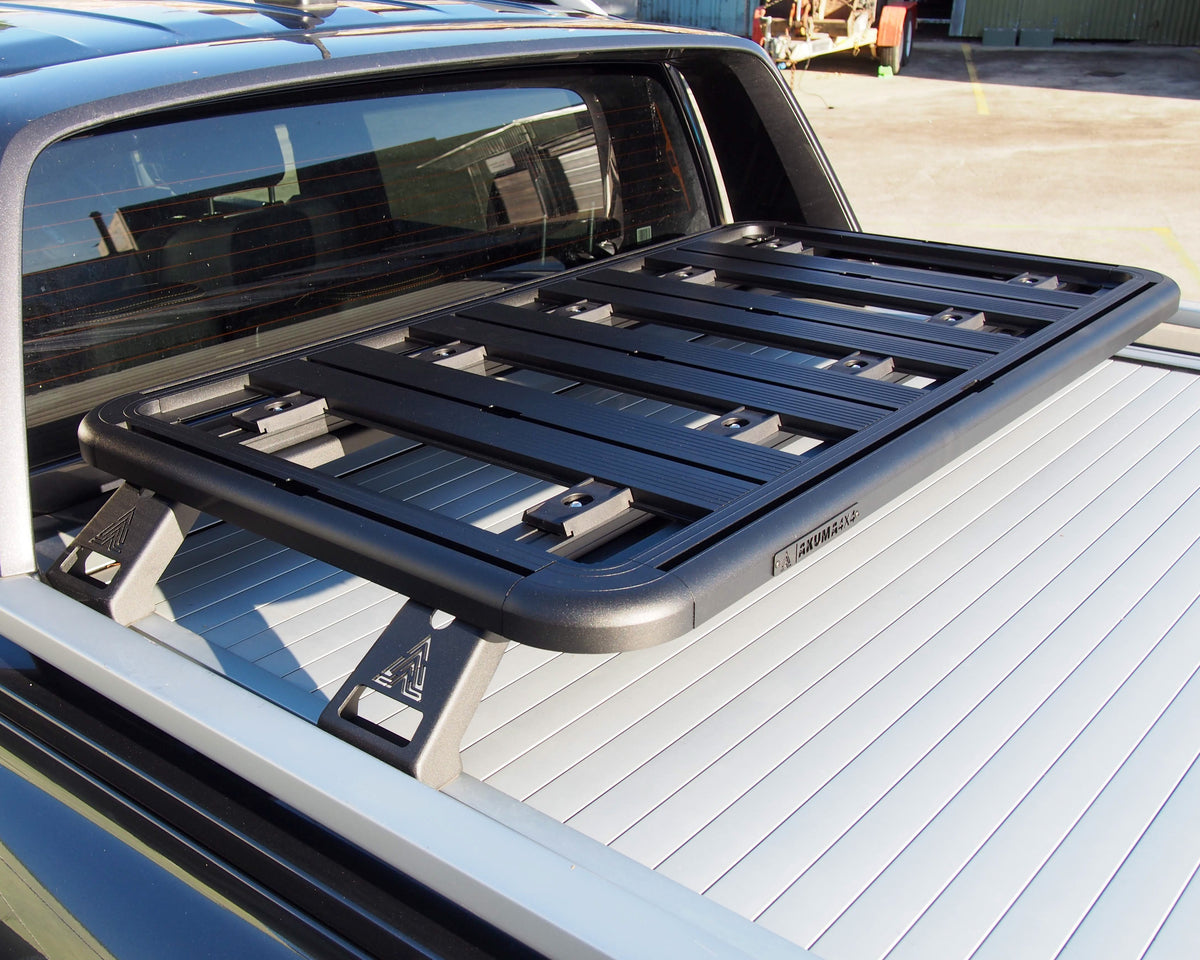

Half-LengthHalf the tray. All of the rack.
The compact platform mounts over the front of the tub, leaving the rear open for taller cargo, bikes or a modular setup. Full-rack versatility without committing the whole tray.
- Half-length design over the front of the tub
- Rear tub access stays clear for tall cargo
- Full T-slot versatility in a smaller footprint
02
Mount Anything

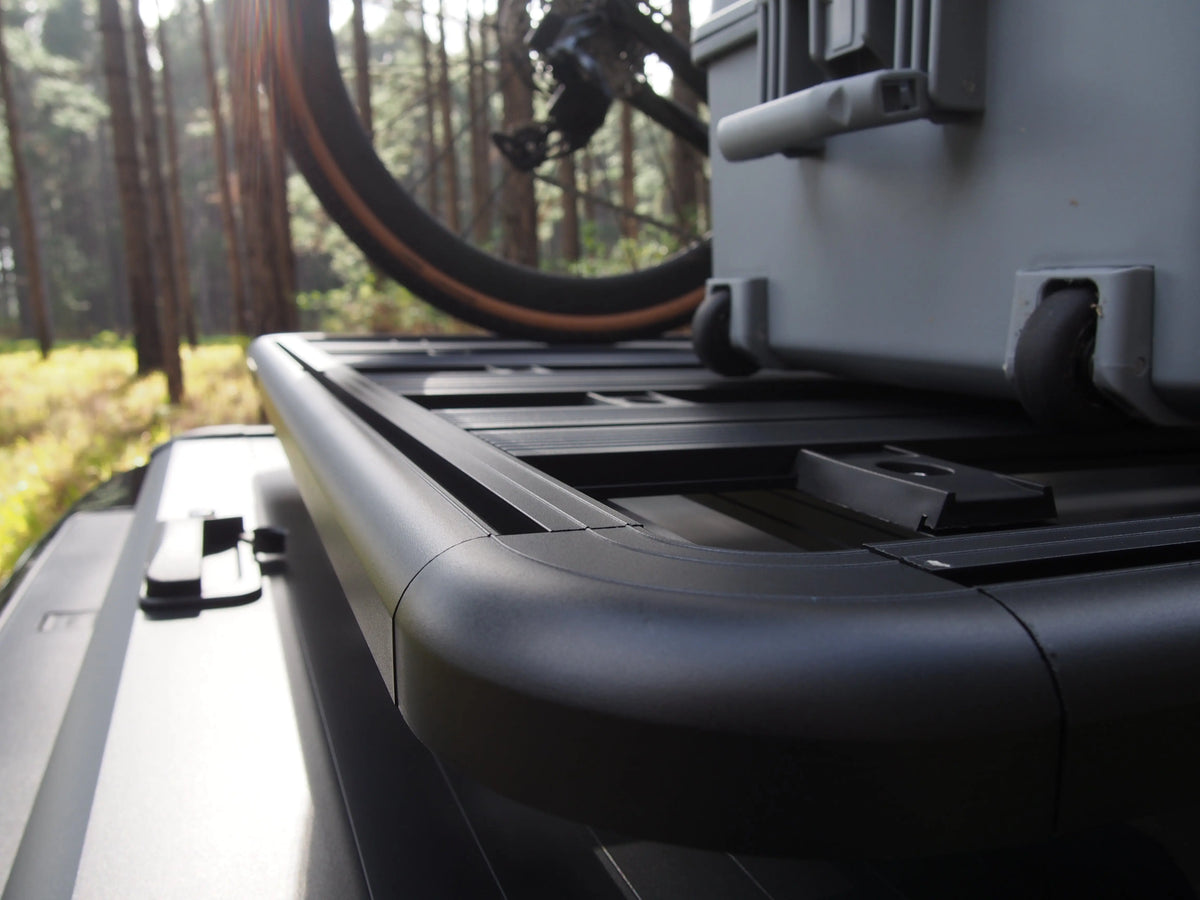

T-Slot ChannelsA channel for your kit.
T-slot runs along the length and the outer edges — tie-downs, brackets, jerry can holders and recovery boards all bolt straight in and reposition without new holes.
- T-slot lengthways and along the outer edges
- Mount tie-downs, brackets, boards, holders
- Reconfigure without re-drilling
03
Clean Install

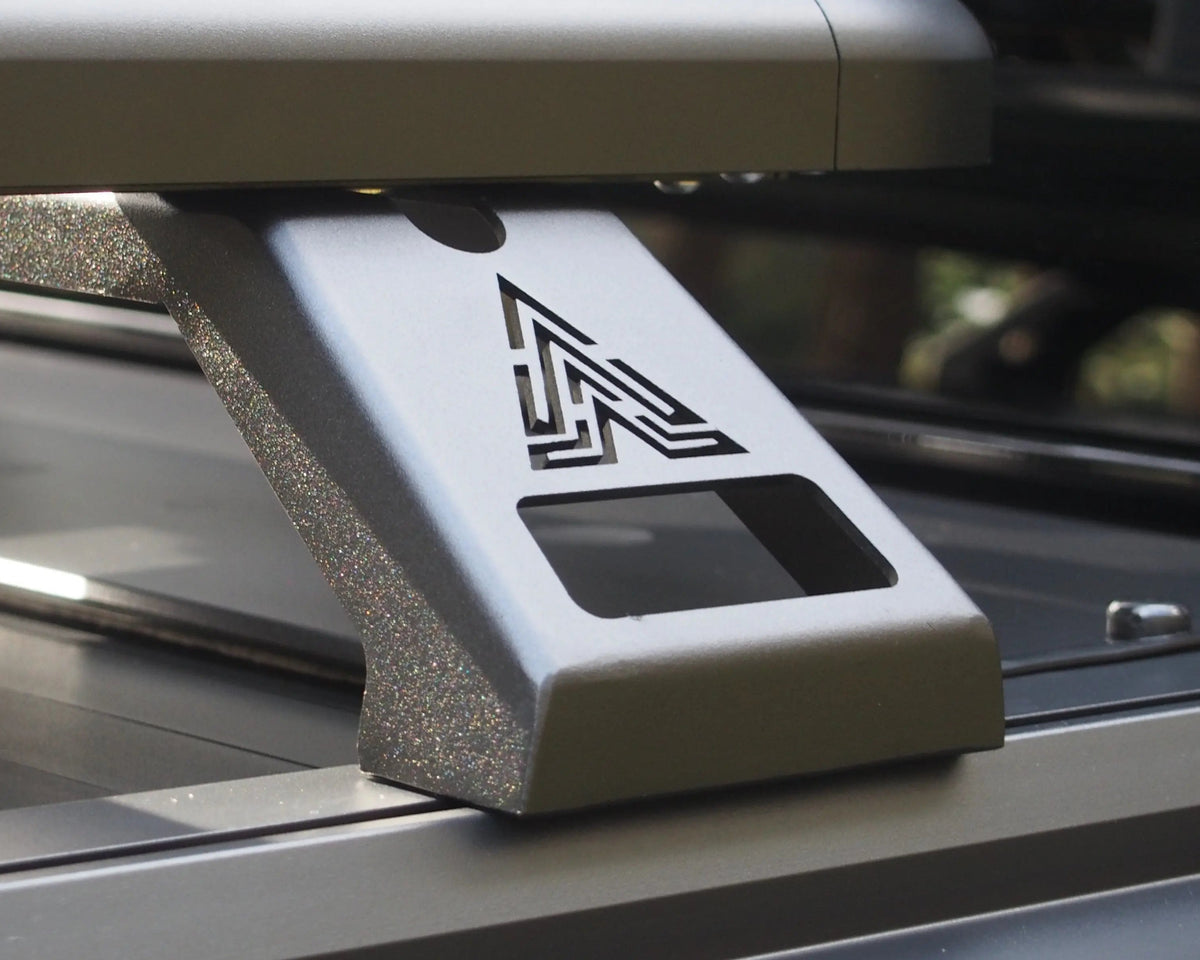

No-Drill MountBolts to the shutter. No holes.
Mounts straight onto your Akuma roller shutter rails: no drilling, no cutting. All hardware supplied and matched to fit, with a step-by-step guide.
- Mounts to the roller shutter rail system
- No drilling or cutting into the tub
- All hardware supplied, DIY-friendly
04
System Ready

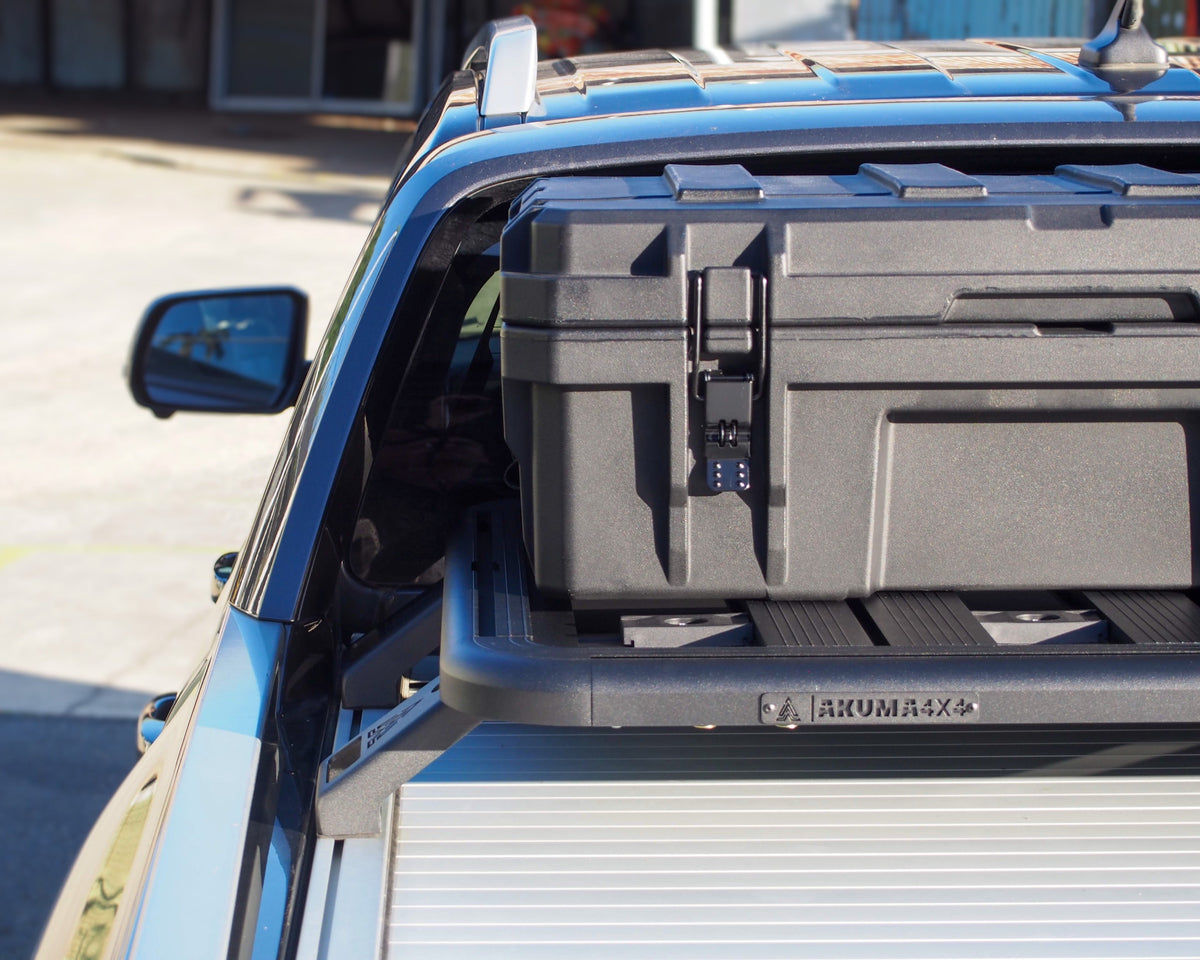

Built To StackPart of the bigger build.
Same high strength powder-coated aluminium build and fitment as the full-size rack. A tidy 130mm profile keeps it garage-friendly and stealthy.
- Shares fitment with the Akuma system
- Tidy 130mm fixed height profile
- Start compact, upgrade later if you need
100kg
Dynamic Load
130mm
Fixed Height
0
Holes to Drill
24mo
Warranty
Hard Data
The
numbers,
printed.
Real specs. A compact platform that keeps rear tub access open. Vehicle-specific fitment, sized per tub.
- Material
DGL powder-coated aluminium with 304 stainless legs and hardware.
- Finish
Matte black
- Profile Height
130mm (fixed)
- Footprint
Half-length · 650mm × 1250mm
- Load Rating (Static)
100kg Dynamic
- Accessory Channels
T-slot lengthways & outer edges
- Mounting
No-drill. Bolts to roller shutter rails
- Compatibility
Pairs with Akuma Roller Shutters & Tie Down Points + Most Aftermarket 4x4 Accessories
- Install
All hardware supplied · DIY guide · Brisbane workshop fitting available
- Warranty
12 Months
Built to Work Together
Pairs with.
Fitting It Up
Step-by-step install guide.
Full install guide with every step and fastener laid out. Handy with a socket set? It's an under hour job, or book the Brisbane workshop and we'll fit it.
Download install guide (PDF)
Opens as a PDF in a new tab
Straight Answers
Questions
we get asked.
What customers actually ask before they buy — fitment, load, install, compatibility. Honest answers, no fluff.
01
Fitment
Will this fit my exact ute and trim?
This compact platform is sized for your ute model. Trim still matters — send us your make, model, year and trim and we'll confirm the right bracket set before you commit.
How is it different from the full-size rack?
The compact is half-length, mounted over the front of the tub, leaving the rear open for taller cargo. The full-size spans the tub for maximum mounting area and — with the Super Support Kit — carries a rooftop tent. Same build, same fitment system.
02
Load & Use
How much can it carry?
100kg static — ideal for toolboxes, recovery gear, an awning or even the spare tyre. For rooftop tents or heavier static loads, step up to the full-size platform with the Super Support Kit.
Can I still use the rest of my tub?
Yes — that's the point. The half-length design leaves the rear tub access open for taller or longer cargo while still giving you a full T-slot mounting surface up front.
03
Install, Warranty & Shipping
Do I need to drill anything?
No. It bolts directly to your Akuma roller shutter rails — no drilling or cutting. All hardware supplied with a step-by-step guide.
Do I need a roller shutter fitted?
Yes — the platform mounts to the Akuma roller shutter rails (or a compatible aftermarket cover — check fitment with us first).
Can I fit it myself, or do you fit it?
Both. DIY with the supplied hardware and guide, or book the Brisbane workshop. AU-wide freight to your door; allow 2–3 days for order prep.
